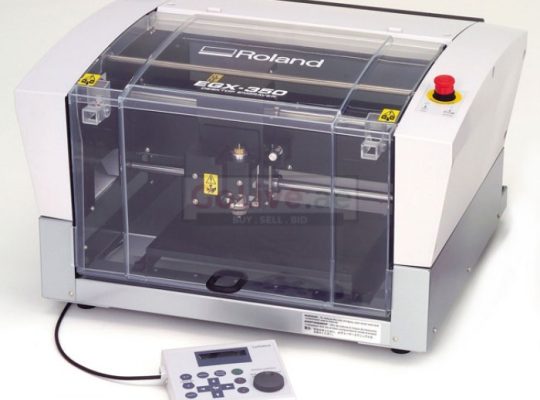

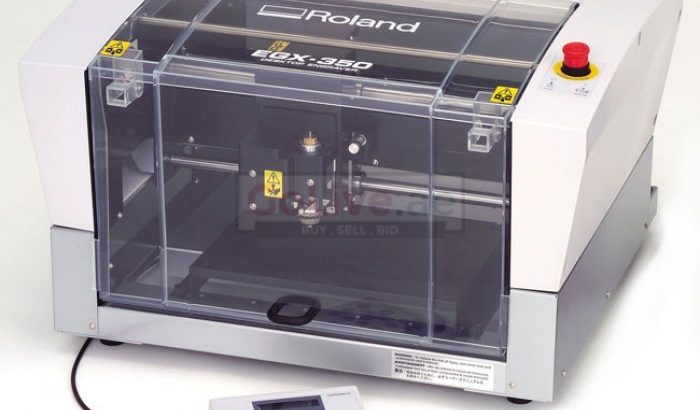

Roland EGX-350 Automatic Engraving Machine (ASOKA PRINTING)

Price   : USD 2,600.00/Pcs
Min Order : 1 – 5 Pcs
Lead Time : 3 – 5 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Paypal, Money Gram
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

Buy Roland EGX-350 Automatic Engraving Machine from Asoka Printing is 100% safe,Because purchase products at Asoka Printing provide a 100% money back guarantee. Location Asoka Printing : Jl.Ring Road No.16 Medan. To purchase online visit the website :www.asokaprinting.com

Asoka Printing store Sell Brand model Printhead and Printers : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.

Contact us : [email protected] Phone : +6281262962539 . Get the special price.

Product Description
EGX-350 Desktop Rotary Engraver

    Spindle speed up to 20,000 rpm
    Convenient, 12″ by 9″ work area
    Advanced surface detector simplifies setup
    Engraving software and tools included
    Optional ADA signage kit available

Distinguishing Features

    20,000 rpm spindle
    Convenient 12” by 9” work area
    Engraving software and tools included

    Convenient hand-held control panel
    Optional ADA Signage Kit available
    1-year warranty

Bundled Software Simplifies Engraving
Roland EngraveStudio
Roland EngraveStudio™ imports designs in AI and EPS formats, helping users with everything from simple jewelry scribing to complex relief wooden signs. With single stroke fonts and a special V-Carving mode, it produces quality results with a realistic hand-engraved look. EngraveStudio also enables on-screen design previews via an engraving simulation function. This saves you precious materials and time
R-Wear Studio

Quickly and easily create rhinestone templates for profitable decorated apparel and bag applications. R-Wear Studio includes a library of 500 hot-fix rhinestones and a job cost display, allowing you to calculate profits and manage rhinestone inventories.
Optional software

The EGX-350 is also compatible with industry-standard engraving programs such as EngraveLab v7.1 and FlexiEngrave 8.51.


MODEL     EGX-350
Table Size    12”(X) x 9.1”(Y) [305 mm x 230 mm]
Max. Cutting Area    12”(X) x 9.1”(Y) x 1.6” [305 mm(X) x 230 mm (Y)] x 40mm(Z)
Feed Rate    X, Y-axis : Up to 2.4 ips (60mm/sec). Z-axis : Up to 1.2 ips (30mm/sec)
Software Resolution    0.004” (0.01 mm) /step or 0.001” (0.025 mm ) /step (XY axis only)
Mechanical Resolution    X, Y -axis : 0.0001 in. (0.0025 mm) /step
Spindle Motor    Brushless DC motor, max. 50 W
Revolution Speed    5,000 to 20,000 rpm
Tool Chuck    Cutter holder and collet
Interface    USB (compliant with Universal Serial Bus Specification Revision 1.1) or serial (RS-232C-compliant)
Instrction System    RML-1
Power Requirements    AC 100 to 120 V ±10%, 1.3 A, 50/60 Hz (overvoltage category II, IEC 60664-1); or AC 220 to 240 V ±10%, 0.6 A, 50/60 Hz (overvoltage category II, IEC 60664-1)
Acoustic Noise Level    During operation: 60 dB (A) or less (when not cutting), During standby: 40 dB(A) or less (as specified by ISO 7779) (According to ISO 7779)
External Dimentions    15.5″ (W) x 24.3″ (D) x 23.3″ (H) [393 (W) x 616 (D) x 591 (H) mm] When cover is open: 23.56″ x 21.5″ x 27″ [598 mm (W) x 545 mm (D) x 685 mm]
Weight    75 lb. (34 kg)
Operation Temperature    41 to 104 °F(5 to 40 °C )
Operation Humidity    35 to 80 % (no condensation)
Accessories    Power cord, depth regulator nose (nose unit), nose-unit retainer (retaining screw, spring), spare mounting screw (for the cutter holder), character cutter (diameter 3.175 mm), flat cutter (diameter 3.175 mm), wrench, solid collet (diameter 3.175 mm), solid collet (diameter 4.36 mm), hexagonal wrench, hexagonal screwdriver, handy panel, adhesive sheet, vacuum adapter for chip cleaning, Roland Software CD-ROM, Roland EngraveStudioTM CD-ROM, Roland Software Program Guide, Roland EngraveStudioTM Program Guide, and User’s Manual



Roland EngraveStudio System Requirements
OS    Windows VistaTM (32-bit edition), Windows® XP, or Windows® 2000
CPU    Pentium® III, 1 GHz or faster recommended
RAM    Windows Vista: 512 MB or more recommended

Windows XP/2000: 256 MB or more recommended
