JOHNSON LEVEL SELF-LEVELING ROTARY LASER SYSTEM

The Johnson Level Self-Leveling Rotary Laser System – 40-6517 is great for indoor and outdoor construction laser level applications including leveling, checking cut and fill, setting foundations and footings,Septic tanks and basement excavations, Acoustical ceiling and drywall installation, aligning and plumbing walls, Contour framing and more.

Features:

Self-leveling in the horizontal plane

Locking mechanism protects inner pendulum during transportation

Manual-leveling in the vertical plane with 90° split beam

Visual and audible alarms when beyond leveling range

Laser rotates at 200, 400, 600 RPM

Illuminated vertical vial

Specifications:

Leveling Method: Self-Leveling (Pendulum)

Laser Wavelength: 635nm +/-10nm

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/8″/50ft. (+/-2mm/10m)

Interior Range: Up to 200` diameter (60m) with detector

Exterior Range: Up to 800` diameter (240m) with detector

Remote Range: N/A

Slope: N/A

Auto-Leveling Range: +/-3 degrees

Grade Setting: N/A

Power Supply: 4 “AA” alkaline batteries (included)

Battery Life: Approximately 20 hours continuous use

Dimensions: 4.96″ x 6.69″ x 6.61″ (126 x 170 x 168mm)

Weight: 3.3 lbs. (1.5kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8″-11

Scanning Modes: N/A

Rotation Speeds: 200, 400, 600 rpm

IP Protection Class: 54

Warranty: 3 Years

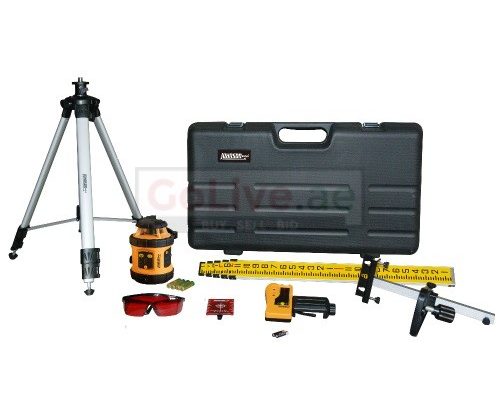

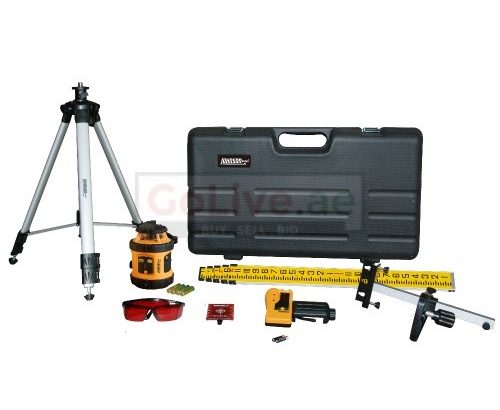

Includes:

Self-Leveling Rotary Laser Level

4 “AA” alkaline batteries

Wall-ceiling mount

8′ grade rod

Laser Detector with 2 “AAA” alkaline batteries and clamp

Tinted glasses

Magnetic target

Elevating tripod

Instruction manual with warranty card

Hard-shell carrying case

3 Year Manufacturer’s Limited Warranty
