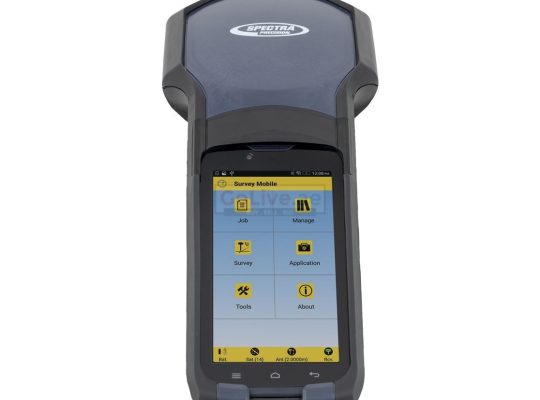

SPECTRA GEOSPATIAL 114819-00 SP20 HANDHELD GNSS RECEIVER

The Spectra Geospatial SP20 Handheld GNSS Receiver is a high-end portable GPS survey tool that is great for cadastral, construction, topographic surveys, GIS projects, inspection, maintenance, and survey solutions. This GNSS receiver is a camera-enabled surveying device that features a scalable solution from meter to centimeter accuracy. Featuring a patented Z-Blade technology, it uses 240 GNSS channels for optimal GNSS performance including GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS.

Easy-to-use and highly accurate, this Spectra Geospatial GNSS receiver features advanced communications such as cellular, WiFi, Bluetooth, USB and NFC (Near Field Communication). It features an ergonomic design and a 5.3-inch gorilla glass screen, which allows specific 2D logging and survey-grade 3D measurements using the monopole adaptor (included). For optimal results, the Geospatial SP20 offers real-time accuracy and post-processing accuracy.

The Spectra SP20 survey tool is powered by an Android 6 Operating System and includes two field software – Google Mobile Services and Sat-Look for a hassle-free tracking. It is supported by an IP67 rating which protects the instrument from dust and water. In addition, the SP20 GNSS receiver uses rechargeable Li-ion batteries that powers up to eight hours. Plus, it only weighs 1.87 pounds and has a size of 11.6” L x 4.7” W x 1.8” H.

Configuration Options

The Spectra Geospatial SP20 Handheld GNSS Receiver offers four position accuracies to suit your needs. Please select your preference from the menu above.

114819-00: Metric (1-Meter Standalone for GNSS and SBAS)

114819-01: Sub-Meter (30 cm Horizontal / 30 cm Vertical)

114819-02: Decimeter (7 cm Horizontal / 2 cm Vertical)

114819-03: Centimeter (Full RTK for 3D Position)

Features for Spectra Geospatial 114819-00 SP20 Handheld GNSS Receiver

High-end portable survey tool

Camera-enabled

Scalable solution from meter to centimeter accuracy

Patented Z-Blade technology

240 GNSS channels

Communications: cellular, WiFi, Bluetooth, USB and NFC

Ergonomic design

5.3” gorilla glass screen

Android 6 Operating System

Field software: Google Mobile Services & Sat-Look

IP67 dustproof and water immersible

Rechargeable Li-ion batteries

Battery life up to 8 hours

Weight: 1.87 lbs

Size: 11.6” L x 4.7” W x 1.8” H
