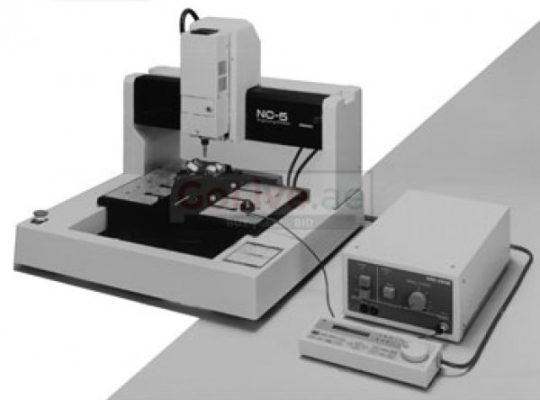

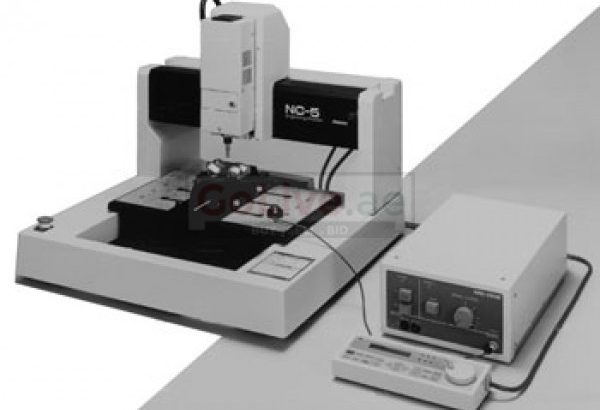

Mimaki NC-5 Modeling Plotter (ASOKA PRINTING)

Price   : USD 600.00/Pcs
Min Order : 1 – 5 Pcs
Lead Time : 3 – 5 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Paypal, Money Gram
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

Buy Mimaki NC-5 Modeling Plotter from Asoka Printing is 100% safe,Because purchase products at Asoka Printing provide a 100% money back guarantee. Location Asoka Printing : Jl.Ring Road No.16 Medan. To purchase online visit the website :www.asokaprinting.com

Asoka Printing store Sell Brand model Printhead and Printers : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.

Contact us : [email protected] Phone : +6281262962539 . Get the special price.

Product Description

■Maximum modeling area: 483 x 305mm (19 x 12″)

■Support of HP-GL*1 and G code*2 enables the NC-5 to work with vareious modeling software / CAD software and CNC commands.

■Mechanical Resolution: 0.5μm

■High Horse Power: 1HP(750w)

■Simultaneous 3-axis linear interpolation command for smooth and speedy 3D modeling.

■Models on metals as well as plastics.

■Rigid construction and precisely controlled servo motors for all X, Y and Z axes provide very accurate modeling.

■Coolant can be applied while modeling.

■Collet spindle can use modeling tools (up to 10mm (0.4″) shank diameter)

■T-slot table and Vacuum table options are available.

■Z stroke is 110mm (4.3″)

■Handy operation panel for ease of use.


 NC-5
X-Y
Axes    Working surface    483mm x 305mm (19″ x 12″) *1
Maximum Material Size    520mm x Unlimited (20.5″ x Unlimited)
Speed    Modeling    0.5-80mm / sec (0.02″-3.1″ / sec)
Moving    0.5-80mm / sec (0.02″-3.1″ / sec)
Acceleration    0.3G
Mechanical Resolution    0.5μm
Z
Axis    Z stroke    110mm (4.3″)
Maximum Material Height    130mm (5.1″)
Speed    Modeling    0.5-80mm / sec (0.02″-3.1″ / sec)
Moving    0.5-80mm / sec (0.02″-3.1″ / sec)
Mechanical Resolution    0.5μm
Command    MGL-IIC3, G *2
Spindle    Maximum Rotation    15000rpm
Adjustable step    Stepless adjustment 2,000-15,000 rpm
Positioning    JOG Key or JOG Dial
Maximum Material Weight    10kg
Method of setting Endmill    Collet Chuck
Programmable Steps    25μm or 10μm (MGL-IIC3), 1μm (G)
Maximum Shank Diameter of Endmill    10mm (0.4″)
Receiver buffer size    1MB
Interface    RS-232C
Table flatness accuracy    0.2mm
Distance accuracy    ±0.15mm or ±0.05% of moving distance
Perpendicularity    ±0.3mm / 300mm
Repeatability    0.05mm
Origin repetition accuracy    ±0.1mm
Power consumption    1,400VA or less
Power requirement    AC 100-120 / 220-240V 50 / 60Hz (Changed by Tap)
Operation enviorment    5-40ºC 30-75% (Rh) No Condensation
Dimensions (W x D x H)    725mm x 755mm x 660mm (Body)
285mm x 505mm x 162mm (Controller)
Weight    70kg (Body)
25kg (Controller)
Model
NC-5    Maximum engraving area: 483mm x 305 mm (19.0 x 12.0″)
